Teraflex JKU 4-Door Base 3” Lift Kit - No Shocks

Engineered with drivability and performance in mind, the TeraFlex JKU Base 3” Lift Kit includes the basic pieces needed to lift your JKU to tackle some serious trails.

Not only do TeraFlex kits drive straight, but they will crawl over anything to get you there and back!

FITS:

• JKU Wrangler Unlimited (4-door)

SPECS:

• LIFT HEIGHT: 3”
• MAX TIRE DIAMETER: 35”

INCLUDES:

• 3” lift coil springs
• Bump stops
• Front sway bar disconnects
• Rear track bar bracket
• Rear sway bar links
• All necessary hardware
• And more

NOTES:

• Requires aftermarket wheels w/ 4.5” backspacing or less – or Offset Wheel Adapters

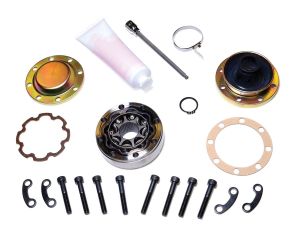

• Driveshaft modifications are recommended with this suspension system. See the TeraFlex Rzeppa High Angle CV Kit (# 1744014).

• 2007-2011 JK/JKU models will require Extended Length Front Brake Lines (# 4353300).

• Requires 2.5-4” Adjustable Alpine Flexarms (# 1415610) and HD Forged Adjustable Front Track Bar (# 1753418) to set correct suspension geometry including caster angle, pinion angle, roll center, & load tuning during re-alignment after installation. Proper suspension geometry ensures all stability controls function within factory parameters.

• Requires longer shocks (not included in base kit) – TeraFlex 9550 VSS (# 1545200) or Falcon shock absorbers recommended.
