TJ: 3” Coil Spring Base Lift Kit w/ Quick Disconnects – No Shocks
Coil Spring Base Lift Kits include just the basic lift components only and don’t have the drivability of a full suspension system.
Requires adjustable control arms and/or adjustable front track bar to correct suspension geometry.
Does NOT include shocks.

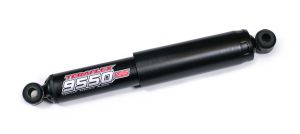

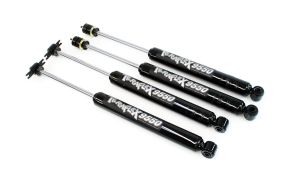

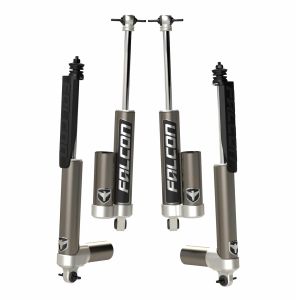

We recommend Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks. These are the only shock absorbers engineered to work with TeraFlex lift coil springs to improve both compression and rebound for optimal vehicle stability.
Fits:
• TJ Wrangler (short wheelbase)
• LJ Wrangler Unlimited (long wheelbase)
• Lift Height: 3”
• Max Tire Diameter: 33”
Includes:
• 3” Lift Coil Springs (Front: # 1843302 & Rear: # 1844302)
• Rear Track Bar Axle Bracket Kit (3-6” Lift) (# 1944000)
• 2.25” Front Lower Bump Stop Extension Kit (3-4” Lift) (# 1910234)
• 1.5” Rear Upper Bump Stop Extension Kit (3” Lift) (# 1910111)
• 10” Front Sway Bar Quick Disconnect Kit (3-6” Lift) (# 1743090)
• 10.5” Rear Sway Bar Link Kit (2.5-5” Lift) (# 1944011)
• 2003-2006 TJ: 1” Transfer Case Lowering Spacer Kit (# 1900103)
• All necessary hardware
• And more
Note(s):
• REQUIRES aftermarket wheels w/ 4.5” backspacing or less – or Offset Wheel Adapters (# 1005200) for stock wheels – NOT INCLUDED.
• Caster correction required – NOT INCLUDED.
| Brand | TERAFLEX |
|---|
