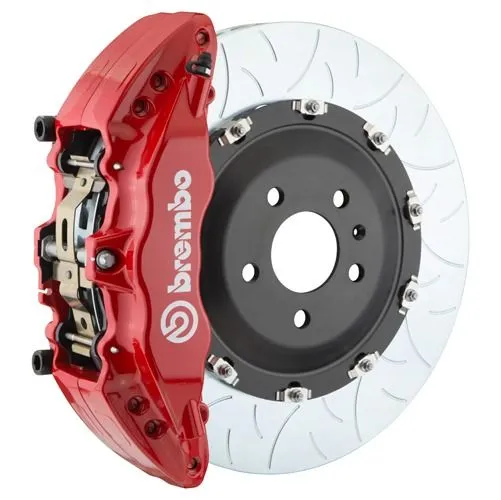

Brembo GT Systems Front Cadillac Escalade T1XX 2021-2024 SKU 1J1.9022A2

Product Description: (F) 6-Piston Cast 2-Piece Calipers | 380x34mm (15'') 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Caliper Body: Cast 2-Piece Radial Mount

Caliper Piston Configuration: 6-Piston

Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot

Disc Type: Cross Drilled, TY1, TY3

Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating

Disc Diameter: 380mm

Disc Width (Measurement): 34mm

Disc Air Gap (Measurement): 14mm

Disc Annulus (Measurement): 62mm

Disc Construction: 2-Piece Disc Assembly

Disc Vane Design (Measurement): Vented Curved 48 Vane

Disc To Hat Mounting System: Floating H-Bobbin with Anti Rattle Spring

Pad Compound: 107.3 | 95.4

Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge

Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

Notes:  Requires modification to the OEM steering knuckle | Brembo GT Systems are designed for vehicles at original ride height. Increased ride height is not compatible with the brake lines included in these systems.
